Sistemas de sujeción para piezas a mecanizar HILMA.SCS

• clamping against the fixed jaw
• mechanically or hydraulically operated
• jaw widths 80 and 120 mm

The clamping systems of the series HILMA.SCS are particularly suitable for use on 5-axis machining centres. Thanks to the compact design, the risk of collisions of the machine spindle with the clamping system is minimised. An improved accessibility to small workpieces is achieved by moving the fixed jaw.

The combined use of clamping systems of the series HILMA.SCS and the rapid change block Quintus provides additional benefits: On the one hand the important distance to the machine table is created, on the other hand setups can be transferred from internal to external and thus the machine running time can be prolonged. This is made by creating a defined interface for the quick change to other clamping systems, for example on three-jaw chucks.
The extensive range of jaws allows the use of the HILMA.SCS clamping systems for a multitude of machining operations. The clamping systems of the series HILMA.SCS is available as a mechanical or hydraulic system, depending on the requirements.


Special benefits

• collision-free tool paths
• good protection against swarf by covered lead screw and guideway
• easy clamping with torque wrench or hydraulically
• flexible applications, extensive accessories and range of clamping jaws

Three hydraulically-operated clamping systems "HILMA.SCS 120 H" on a 5-axis machining centre. The structure is flexible on a common base plate, the individual systems can be adapted by simple movement to different workpiece dimensions. The shown system uses special jaws with hard-metal coating, Clamping and unclamping are made by a valve with turning knob, alternatively, operation can be effected by foot switch or by the machine control. The connection to the machine hydraulics allows the program-controlled regulation of the clamping force.

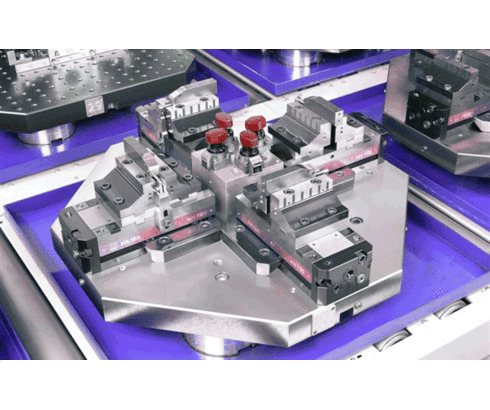

The use of four hydraulic clamping system HILMA.SCS H 120 arranged star-shaped on a change pallet for machining on a 5-axis machine. The shown system uses special jaws with hard-metal coating, Clamping and unclamping are made by a valve with turning knob, alternatively, operation can be effected by foot switch or by the machine control. The hydraulic system is supplied with pressure oil through deep-hole drilled channels in the base plate.
