Description
ZERO POINT CLAMPING SYSTEM
STARK.easyclick
Single acting, pneumatic

The STARK.easyclick is a mechanical fast closing clamp that clicks and holds instantly without energy input. For release, it only needs an air connection with 4 - 8 bar pressure.

Special features of the STARK.easyclick product family:

  • Click: Clamping process by pushing in
  • Compact: Diameter 85 mm and only 19 mm high
  • Powerful: 5 kN clamping force - 10 kN retention force
  • Economical: released at 4 bar
  • Fast: Release time 0.1 sec


Detailed information on the STARK.easyclick product family can be found in the catalogue download:



Benefits & Advantages
Easiest clamping process - click & hold!

well thought out - tried and tested - unique

  • Click & hold
  • Flat design
    Diameter 85 mm and only 19 mm high
  • Highest forces on the market
    In this size, the STARK.easyclick achieves the highest forces on the market
    5 kN clamping force - 10 kN retention force
  • Autonomous solution
    The volume of a manual air pump (e.g. hand pump) is sufficient to release the system
  • Easy to install
    Installation takes place without complex machining processes
Functions

Functions - STARK.easyclick

Single acting, pneumatic

click & hold

The STARK.easyclick is a mechanical fast closing clamp that clicks and holds instantly without energy input. For release, it only needs an air connection with 4 - 8 bar pressure (the volume of a hand pump is sufficient).

STARK.easyclick is used in non-cutting and cutting machining.

The mechanical click-in makes the STARK.easyclick particularly suitable for use as a robot gripper in automation technology.


The fast clamping time (click) allows use as a construction element in production lines. The particularly compact design allows narrow pitches; short retractable nipples with a length of 15 mm ensure short lifting distances.

Integrated query options and oil-free operation extend the range of applications. The STARK.easyclick is also available with a seat check and blow-out.

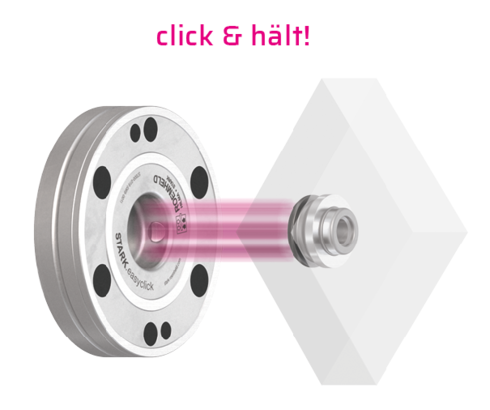

click & hold

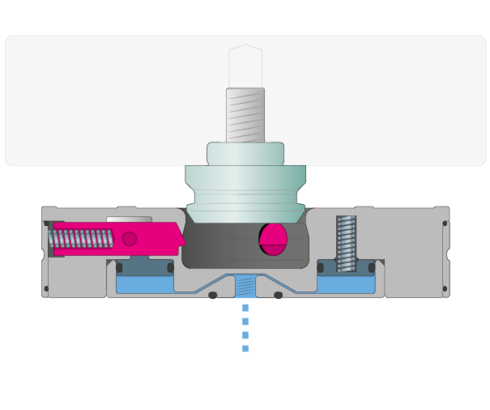

  • The system is depressurised in the home position.
  • The pallet is clicked in directly when feeding.
  • In principle, it is also possible to retract the pressurised element with the retractable nipple. By switching off the pressure, the system is clamped with spring force.



Release

  • The system is pressurised (4 - 8 bar); the pallet can be removed.

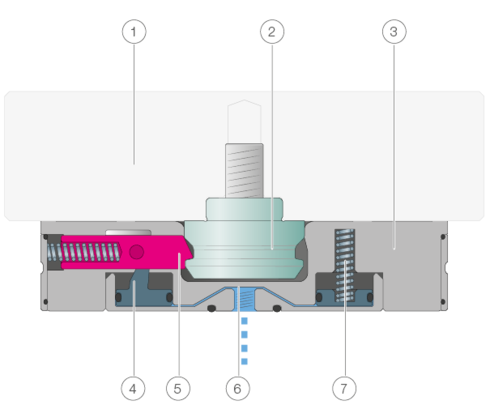

  1. Workpiece/nipple pallet
  2. Retractable nipple
  3. STARK.easyclick housing
  4. Piston
  5. Clamping bolt
  6. Pneumatic connection
  7. Tension spring



Functional video
Catalogue & Download
Preview image for file STARK.easyclick
Catalog page
STARK.easyclick
Zero clamping systems
WM-020-338-03-en_STARK-easyclick_v02-00_web.pdf
