Mechanical zero point clamping system
STARK.metec
Descargas
Hoja del catálogo
Instrucciones de servicio
Informaciones de la serie
Description
ZERO POINT CLAMPING SYSTEM
STARK.metec
Mechanical zero point clamping system

The STARK.metec product family consists of three robust mechanical zero point clamping systems with high retention force, 12 kN / 20 kN / 50 kN. STARK.metec is a solid, mechanical zero point clamping system that enables simple and cost-effective zero point clamping solutions.

Special features of the STARK.metec product family:

  • Simple: quickly installed
  • Robust: few individual parts
  • Compact: high force density
  • Economical: easy maintenance
  • Fast: a torque wrench is sufficient


Detailed information on the STARK.metec product family can be found in the catalogue download:



Benefits & Advantages
Tried and tested technology with system – original down to the smallest detail

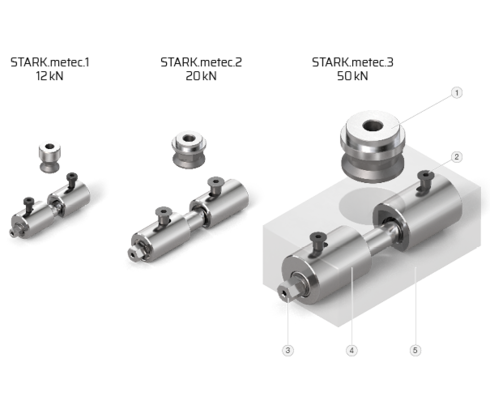

The STARK.metec product family consists of three robust mechanical zero point clamping systems with high retention force:

  • STARK.metec.1 with 12 kN
  • STARK.metec.2 with 20 kN
  • STARK.metec.3 with 50 kN

STARK.metec is a solid, mechanical zero point clamping system that enables simple and cost-effective zero point clamping solutions.



  1. Retractable nipple
  2. Guide screw
  3. Actuation of the spindle
  4. Wedge bolts
  5. Installation housing

Optimise set-up times and increase flexibility

  • Easy to handle – a torque wrench is sufficient
  • No media (compressed air, hydraulics) required
  • Low set-up times due to short operating times
  • No one-sided transverse forces on the retractable nipple during the clamping process
  • Simple and robust construction with a long service life
  • Low acquisition costs, fast amortisation

Many areas of application

  • Universal applicability as a construction element
  • Workpiece clamping using vices or other clamping devices
  • Direct mounting in your own workpiece holders such as brackets, cubes or plates
  • Workpiece direct clamping
Functions
Functions - STARK.metec

Mechanical zero point clamping system



The workpiece is clamped with approx. 2 – 3 turns!

  • Workpiece/nipple pallet (1) is clamped/released with approx. 2 - 3 turns on the spindle (6)
  • Guide screw (3) fixes the installed STARK.metec in fast closing plate / installation housing (4)
  • Wedge bolts (5) clamp retractable nipple (2) precisely to zero point



  1. Workpiece / nipple pallet
  2. Retractable nipple
  3. Guide screw
  4. Fast closing plate / installation housing
  5. Wedge bolts
  6. Actuation of the spindle
Functional video
Catalogue & Download
Preview image for file STARK.metec
Catalog page
STARK.metec
Zero clamping systems
WM-020-293-03-en_STARK-metec_v02-00_web.pdf
