Series
B1.4843

Bore clamp

Cartridge type,without centring function
double acting, for bore hole diameter 7.8 - 17.7 mm
max. operating pressure 250 bar
Bore clamp
Downloads
Catalogue sheet
Operating instructions
Information Series
Description
B 1.4843 Bore Clamp

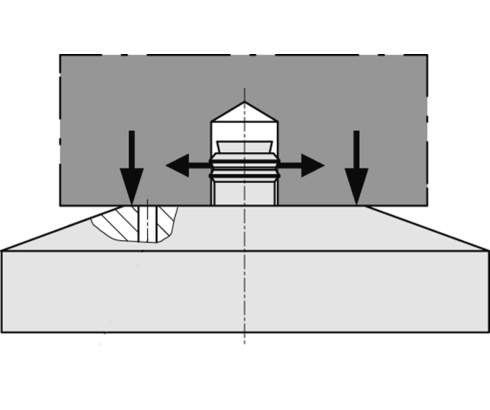

The bore clamp is a double-acting pull-type cylinder. An exchangeable clamping bushing is fixed to the piston.
The four segments of the clamping bushing are radially expanded with spring force  by a pyramid-shaped clamping bolt. Thus the expansion force is always the same and independent of the hydraulic clamping pressure.
The workpiece is also held without hydraulics by means of the expanded clamping bushing. Both pull-down of the workpiece and unclamping of the clamping bushing are hydraulically controlled.
Connecting the positive air pressure protection, the clamping bushing is protected against swarf and coolants.
In the hardened support surface for the workpiece there is a bore hole for the pneumatic seat check.

Video
Products (12)
Loading…
type
bore clamp (12)
functioning
double acting (12)
max. operating pressure [bar]
250 (12)
hydraulic ports
for drilled channels (12)
centring function
without centring (12)
body design
cartridge type (12)
min. clamping diameter [mm]
max. clamping diameter [mm]
max. low-clamping force [kN]
seal
FKM (12)
seat check
pneumatic (12)
connection for positive air pressure protection
with (12)
Item no. CAD datatypefunctioningmax. operating pressure [bar]hydraulic ports
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Item no.
CAD data
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
Properties
Loading…
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
7.8
max. clamping diameter [mm]
8.2
max. low-clamping force [kN]
5.1
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
8.3
max. clamping diameter [mm]
9.2
max. low-clamping force [kN]
5.1
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
9.3
max. clamping diameter [mm]
9.7
max. low-clamping force [kN]
5.1
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
9.8
max. clamping diameter [mm]
10.2
max. low-clamping force [kN]
5.1
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
10.3
max. clamping diameter [mm]
11.2
max. low-clamping force [kN]
5.1
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
11.3
max. clamping diameter [mm]
11.7
max. low-clamping force [kN]
9.8
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
11.8
max. clamping diameter [mm]
12.7
max. low-clamping force [kN]
9.8
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
12.8
max. clamping diameter [mm]
13.7
max. low-clamping force [kN]
9.8
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
13.8
max. clamping diameter [mm]
14.7
max. low-clamping force [kN]
9.8
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Item no.
type
bore clamp
functioning
double acting
max. operating pressure [bar]
250
hydraulic ports
for drilled channels
centring function
without centring
body design
cartridge type
min. clamping diameter [mm]
14.8
max. clamping diameter [mm]
15.7
max. low-clamping force [kN]
9.8
seal
FKM
seat check
pneumatic
connection for positive air pressure protection
with
Accessories (16)
Item no. CAD data Description
Item no.
CAD data
/
Description
Clamping set for bore clamps size 2, Ø 11.3 - 11.7 mm for bore clamp 4318-2X0F as per data sheet B1.4841
Item no.
CAD data
/
Description
Clamping set for bore clamps size 2, Ø 11.8 - 12.7 mm for bore clamp 4318-2X0G as per data sheet B1.4841
Item no.
CAD data
/
Description
Clamping set for bore clamps size 2, Ø 12.8 - 13.7 mm for bore clamp 4318-2X0H as per data sheet B1.4841
Item no.
CAD data
/
Description
Clamping set for bore clamps size 2, Ø 13.8 - 14.7 mm for bore clamp 4318-2X0K as per data sheet B1.4841
Item no.
CAD data
/
Description
Clamping set for bore clamps size 2, Ø 14.8 - 15.7 mm for bore clamp 4318-2X0L as per data sheet B1.4841
Item no.
CAD data
/
Description
Clamping set for bore clamps size 2, Ø 15.8 - 16.7 mm for bore clamp 4318-2X0M as per data sheet B1.4841
Item no.
CAD data
/
Description
Clamping set for bore clamps size 2, Ø 16.8 - 17.7 mm for bore clamp 4318-2X0N as per data sheet B1.4841
Item no.
CAD data
/
Description
Clamping set for bore clamps size 1, Ø 7.8 - 8.2 mm for bore clamp 4318-1X0A as per data sheet B1.4841
Item no.
CAD data
/
Description
Clamping set for bore clamps size 1, Ø 8.3 - 9.2 mm for bore clamp 4318-1X0B as per data sheet B1.4841
Item no.
CAD data
/
Description
Clamping set for bore clamps size 1, Ø 9.3 - 9.7 mm for bore clamp 4318-1X0C as per data sheet B1.4841
Loading…
Application examples

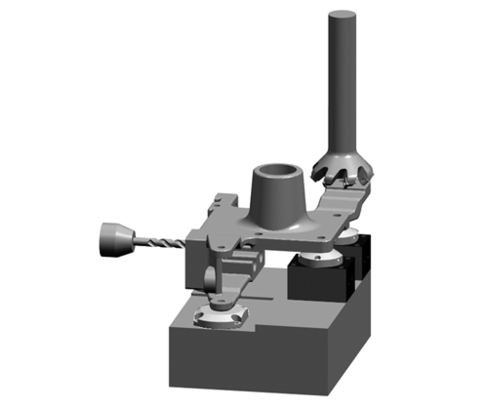

Application example 1

Machining of an oil sump from 5 sides
