Series
C2.320

Directional control valves ND 4

manually, mechanically or pressure operated
max. operating pressure 500 bar
Directional control valves ND 4
Downloads
Catalogue sheet
DEENFRESIT
Operating instructions
Information Series
Description
C 2.320 Directional Control Valves ND 4

Application
The directly operated directional control valves are used to control hydraulic elements when a power supply is not possible or reasonable.
These directional control valves can directly control hydraulic consumers or be used as pilot valves for hydraulically-operated switching devices.
The closed directions of flow are hermetically tight. The switching operation is smooth and shock-free. A strainer insert in the pressure port protects the valve seats from coarse impurities.

Technical data
Type: Ball-type poppet valve, hermetically sealed
Type of connection: Mounting plate (see accessories)
Port size: G 1/4
Mounting position: any, vertical preferred

Hydraulic characteristics
Max. operating pressure: 500 bar
Max. flow rate: 8 l/min
Flow direction: only in the direction of the arrow, as in the symbol
Hydraulic oil: as per DIN 51524

Types of operation
manual: Rotary handle or Sensing lever
mechanical: Sensing roller or Sensing pin
pressure operated: hydraulic or pneumatic

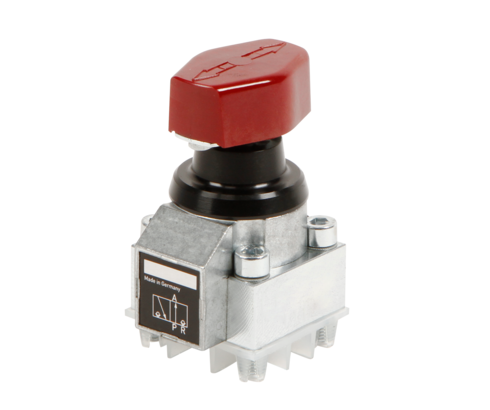

type of operation rotary handle D
type of operation rotary handle D

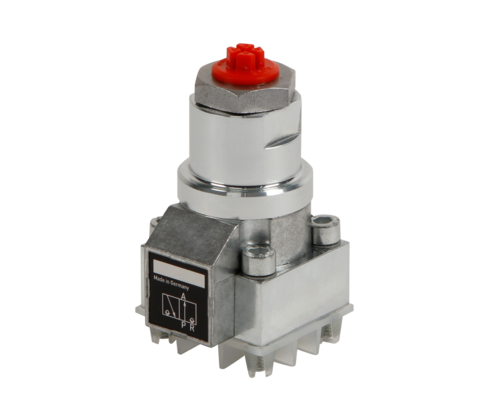

type of operation hydraulic H
type of operation hydraulic H

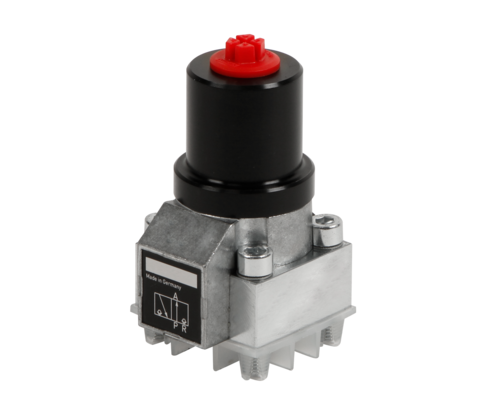

type of operation pneumatic P
type of operation pneumatic P

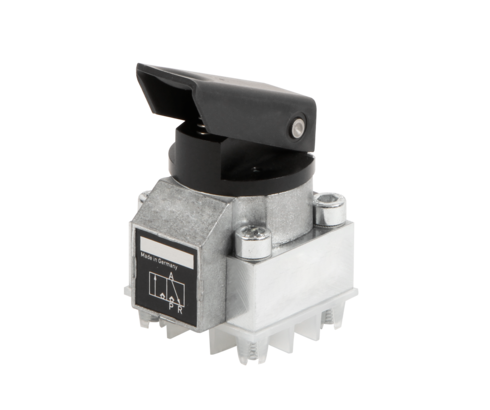

type of operation sensing lever F
type of operation sensing lever F

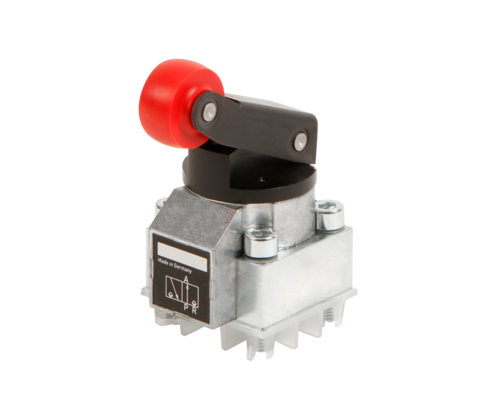

type of operation sensing roller K
type of operation sensing roller K

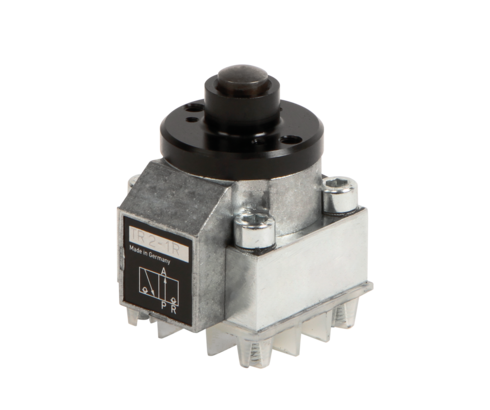

type of operation sensing pin T
type of operation sensing pin T
Products (25)
type
directional control valve (25)
type
max. operating pressure [bar]
500 (25)
operation
type
Ball-type poppet valve (25)
check valve
nominal diameter
ND 4 (25)
max. flow rate [l/min]
8 (25)
port size
G 1/4 (25)
Types of operation
Item no. CAD datatypetypemax. operating pressure [bar]operation
Item no.
2321201
CAD data
type
directional control valve
type
3/2 directional control valve DZ 3-1
max. operating pressure [bar]
500
operation
manual
Properties
Item no.
2321300
CAD data
type
directional control valve
type
3/2 directional control valve DZ 3-1R
max. operating pressure [bar]
500
operation
manual
Properties
Item no.
2321302
CAD data
type
directional control valve
type
2/2 directional control valve DR 2-1
max. operating pressure [bar]
500
operation
manual
Properties
Item no.
2322200
CAD data
type
directional control valve
type
3/2 directional control valve T 3-1
max. operating pressure [bar]
500
operation
mechanical
Properties
Item no.
2322201
CAD data
type
directional control valve
type
3/2 directional control valve TZ 3-1R
max. operating pressure [bar]
500
operation
mechanical
Properties
Item no.
2322203
CAD data
type
directional control valve
type
3/2 directional control valve TZ 3-1
max. operating pressure [bar]
500
operation
mechanical
Properties
Item no.
2322301
CAD data
type
directional control valve
type
3/2 directional control valve T 3-1R
max. operating pressure [bar]
500
operation
mechanical
Properties
Item no.
2322302
CAD data
type
directional control valve
type
2/2 directional control valve TR 2-1
max. operating pressure [bar]
500
operation
mechanical
Properties
Item no.
2323201
CAD data
type
directional control valve
type
3/2 directional control valve F 3-1R
max. operating pressure [bar]
500
operation
manual
Properties
Item no.
2323301
CAD data
type
directional control valve
type
3/2 directional control valve FZ 3-1R
max. operating pressure [bar]
500
operation
manual
Properties
Item no.
2321201
type
directional control valve
type
3/2 directional control valve DZ 3-1
max. operating pressure [bar]
500
operation
manual
type
Ball-type poppet valve
check valve
without
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
rotary handle D
Item no.
2321300
type
directional control valve
type
3/2 directional control valve DZ 3-1R
max. operating pressure [bar]
500
operation
manual
type
Ball-type poppet valve
check valve
with
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
rotary handle D
Item no.
2321302
type
directional control valve
type
2/2 directional control valve DR 2-1
max. operating pressure [bar]
500
operation
manual
type
Ball-type poppet valve
check valve
without
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
rotary handle D
Item no.
2322200
type
directional control valve
type
3/2 directional control valve T 3-1
max. operating pressure [bar]
500
operation
mechanical
type
Ball-type poppet valve
check valve
without
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
sensing pin T
Item no.
2322201
type
directional control valve
type
3/2 directional control valve TZ 3-1R
max. operating pressure [bar]
500
operation
mechanical
type
Ball-type poppet valve
check valve
with
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
sensing pin T
Item no.
2322203
type
directional control valve
type
3/2 directional control valve TZ 3-1
max. operating pressure [bar]
500
operation
mechanical
type
Ball-type poppet valve
check valve
without
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
sensing pin T
Item no.
2322301
type
directional control valve
type
3/2 directional control valve T 3-1R
max. operating pressure [bar]
500
operation
mechanical
type
Ball-type poppet valve
check valve
with
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
sensing pin T
Item no.
2322302
type
directional control valve
type
2/2 directional control valve TR 2-1
max. operating pressure [bar]
500
operation
mechanical
type
Ball-type poppet valve
check valve
without
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
sensing pin T
Item no.
2323201
type
directional control valve
type
3/2 directional control valve F 3-1R
max. operating pressure [bar]
500
operation
manual
type
Ball-type poppet valve
check valve
with
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
sensing lever F
Item no.
2323301
type
directional control valve
type
3/2 directional control valve FZ 3-1R
max. operating pressure [bar]
500
operation
manual
type
Ball-type poppet valve
check valve
with
nominal diameter
ND 4
max. flow rate [l/min]
8
port size
G 1/4
Types of operation
sensing lever F
Accessories (4)
Item no. CAD data Description
Item no.
3000340
CAD data
/
Description
O-ring 5 x 1.5 mm as per data sheet C2.320
Item no.
3000343
CAD data
Description
O-ring 8 x 1.5 mm, NBR as per data sheet B1.5091
Item no.
3534039
CAD data
Description
Mounting plate as per data sheet C2.320
Item no.
3815002
CAD data
Description
Plug-in check valve ER 11 max. 500 bar, as per data sheet C2.360
