Slide pivot clamp

Articles and prices on request

compact version with optional position monitoring
double acting, max. operating pressure 350 bar

Downloads

Catalogue sheet

DE EN FR ES IT

Operating instructions

Information Series

Description

B 1.8242 Slide pivot clamps

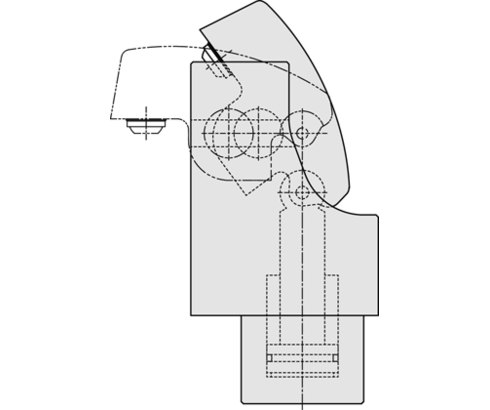

In the case of the slide pivot clamp the piston force is deviated by 180° by the clamping lever and is available as clamping force with virtually no loss of efficiency. Kinematics of the slide pivot clamp allow sliding back of the clamping lever during unclamping for unimpeded insertion of the workpieces.
The position of the clamping lever can be monitored by inductive proximity switches or pneumatic jets. The pivot slide clamp can be installed immersed up to the flange surface in a hole of the fixture body or via intermediate plates which are available as an accessory. For both solutions there is the possibility to supply the hydraulic oil not only by fitting connection but also via drilled channels in the fixture body.

Products (1)

Article available on request

On request, we will check whether the article is still available

Number

Item no.	CAD data	type	functioning	max. operating pressure [bar]	seals
Item no. 1824040	CAD data	type slide pivot clamp	functioning double acting	max. operating pressure [bar] 350	seals NBR	Properties

Accessories (8)

Article available on request

On request, we will check whether the article is still available

Number

Item no.	CAD data	Description
Item no. 3300434	CAD data	Description Socket head cap screw M10 x 55 mm, 12.9 as per data sheet B1.8242
Item no. 3301803	CAD data	Description Lock nut M5 x 0.5 mm as per data sheet B1.8242
Item no. 3456425	CAD data	Description Intermediate plate for 1824-040 as per data sheet B1.8242
Item no. 3610158	CAD data	Description Screw plug VSD G1/8 ED max. 400 bar, as per data sheet F9.300
Item no. 3612033	CAD data	Description Pneumatic jet M5 x 0.5 mm as per data sheet B1.8242
Item no. 3829099	CAD data	Description Connecting cable with pnp right angle plug M8 with 2 LED, cable length 5m as per data sheet G2.140
Item no. 3829198	CAD data	Description Inductive proximity switch PNP, 10...30 VDC as per data sheet B1.8251
Item no. 9210132	CAD data	Description Plug-type connector ND5 - Ø10 x 14 mm short version, with FKM seals max. 500 bar, as per data sheet F9.300

Application examples

Application example 1

Slide pivot clamp B1.8242
