B 1.8807 Swing clamps without swing stroke

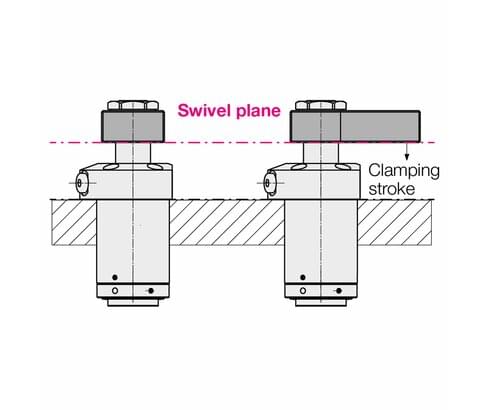

In this version without axial swing stroke, the clamping arm swivels in one plane and does not make any axial movement when swivelled.

Special features
• Reinforced swing mechanism
• Connections for pipe threads and drilled channels
 • Radial anti-rotation device in the clamping stroke
 • Indexing of clamping arm for repeatable alignment

Reinforced swing mechanism
The reinforced swing mechanism ensures that the angle position of the clamping arm remains the same even if a slight collision with the workpiece during loading and unloading or during clamping occurs.

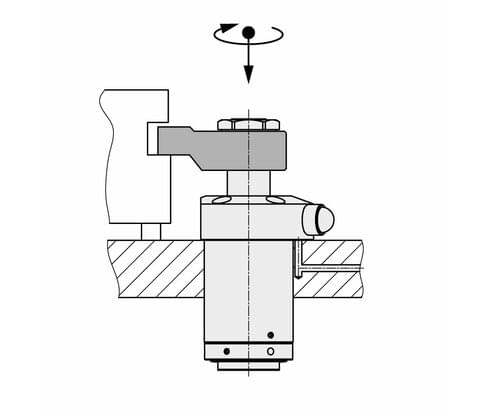

Radial anti-rotation device in the clamping stroke
With swivelling clamping devices, workpieces can also be machined overhead. In the event of a sudden drop in clamping pressure, the radial anti-rotation device prevents the clamping arm from swivelling back. The workpiece is then no longer clamped. However, a sensible arrangement of several swing clamps and workpiece positioning aids can prevent the workpiece from falling out of the fixture (see also the note in the operating manual).

Advantages
● Compact design partially recessible
● Compact design
● Extremely short clamping and unclamping times
● Swinging in into narrow recesses
● Wiper with metal swarf protection

Versions
• 3 sizes
• Clamping arm seat with cone 1: 10, pendulum eye or fork head
• 2 clamping strokes per size
• Clockwise, counterclockwise or non-swivelling swing motion
• Swing angle 0°, 15° to 75° and 90°
• Angle of clamping position selectable for pendulum eye or fork head

Seals
NBR = nitrile butadiene rubber

Double clamping arm
This allows space-saving clamping of workpieces in multiple clamping fixtures.
Piston rods with pendulum eyes and fork heads are available so that optimally fitting double clamping arms can be attached.
For a newly designed double clamping arm, the moment of inertia must be determined to
calculate the admissible flow rate using the formula on page 9 of the catalogue sheet.

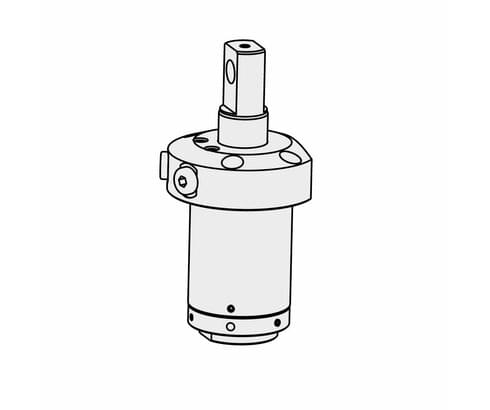

Clamping arm seat with pendulum eye
Clamping arm seat with pendulum eye

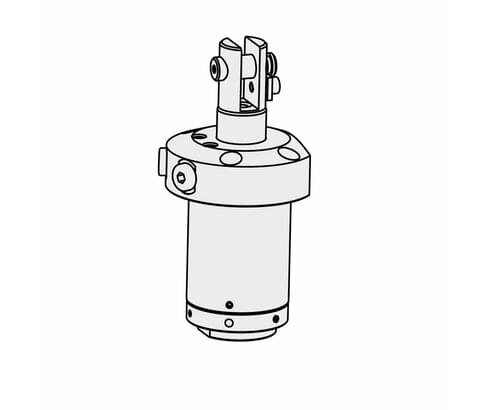

Clamping arm seat with fork head
Clamping arm seat with fork head

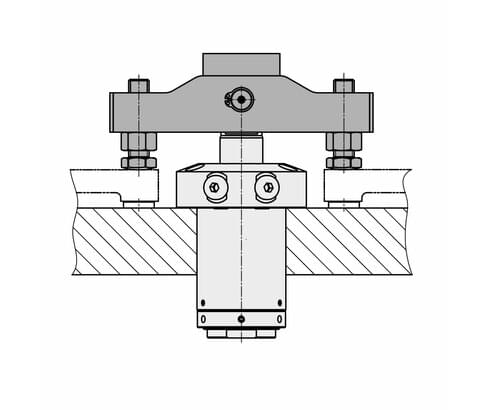

Double clamping arm
Double clamping arm
Products (522)
Loading…
body design
top flange (522)
size
clamping arm seat
clamping stroke [mm]
swing stroke [mm]
0 (522)
total stroke [mm]
swing angle [°]
swing direction
angle of clamping position W [°]
functioning
double acting (522)
piston diameter [mm]
rod diameter [mm]
max. pulling force [kN]
max. operating pressure [bar]
250 (522)
seals
NBR (522)
hydraulic ports
pipe thread and manifold connection with O-ring (522)
swing mechanism
reinforced (522)
Item no. CAD datafunctioningpiston diameter [mm]rod diameter [mm]max. pulling force [kN]
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Item no.
CAD data
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
Properties
Loading…
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
12
swing mechanism
reinforced
swing angle [°]
35
swing direction
ccw
swing stroke [mm]
total stroke [mm]
12
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
25
swing mechanism
reinforced
swing angle [°]
35
swing direction
ccw
swing stroke [mm]
total stroke [mm]
25
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
12
swing mechanism
reinforced
swing angle [°]
40
swing direction
ccw
swing stroke [mm]
total stroke [mm]
12
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
25
swing mechanism
reinforced
swing angle [°]
40
swing direction
ccw
swing stroke [mm]
total stroke [mm]
25
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
12
swing mechanism
reinforced
swing angle [°]
45
swing direction
ccw
swing stroke [mm]
total stroke [mm]
12
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
25
swing mechanism
reinforced
swing angle [°]
45
swing direction
ccw
swing stroke [mm]
total stroke [mm]
25
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
12
swing mechanism
reinforced
swing angle [°]
50
swing direction
ccw
swing stroke [mm]
total stroke [mm]
12
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
25
swing mechanism
reinforced
swing angle [°]
50
swing direction
ccw
swing stroke [mm]
total stroke [mm]
25
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
12
swing mechanism
reinforced
swing angle [°]
55
swing direction
ccw
swing stroke [mm]
total stroke [mm]
12
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
functioning
double acting
piston diameter [mm]
36
rod diameter [mm]
25
max. pulling force [kN]
13.1
max. operating pressure [bar]
250
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
clamping stroke [mm]
25
swing mechanism
reinforced
swing angle [°]
55
swing direction
ccw
swing stroke [mm]
total stroke [mm]
25
clamping arm seat
pendulum eye
size
2
angle of clamping position W [°]
0-175
