Series
B1.8806
Swing Clamp without Swing Stroke
Top flange, reinforced swing mechanism
position monitoring optional
double acting, max. operating pressure 350 bar
position monitoring optional
double acting, max. operating pressure 350 bar
Information Series
Description
B 1.8806 Swing clamps without swing stroke
Hydraulic swing clamps are used for clamping of workpieces, when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading.

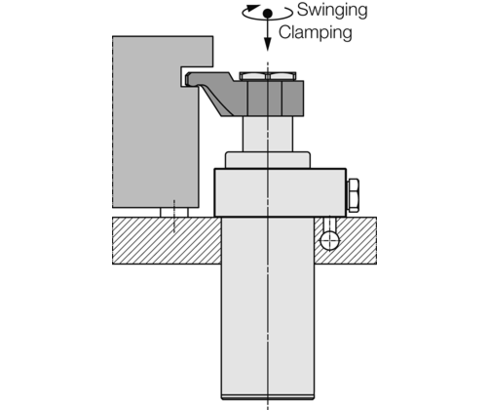

Using this version without swing stroke, the clamping arm swings in one level and thereby allows the clamping of workpieces in recesses that are only insignificantly higher than the clamping arm.
The swing clamp without swing stroke is a double-acting pull-type cylinder where a part of the piston stroke is used to swing the piston rod without axial stroke.
Clamping
- The piston rod is rotated together with the clamping arm without axial stroke (swing stroke) in the desired direction.
- After swinging in the clamping arm above the clamping point, the linear clamping stroke will be effected.
Unclamping
- For the linear return stroke, the clamping arm is lifted from the clamping point.
- The piston rod swings the clamping arm without axial stroke back to the off-position.
Products (24)
Loading…
| Item no. | CAD data | functioning | piston diameter [mm] | rod diameter [mm] | max. pulling force [kN] | |
|---|---|---|---|---|---|---|
|
Item no.
|
CAD data
|
Properties
| ||||
|
Item no.
|
CAD data
|
Properties
| ||||
|
Item no.
|
CAD data
|
Properties
| ||||
|
Item no.
|
CAD data
|
Properties
| ||||
|
Item no.
|
CAD data
|
Properties
| ||||
|
Item no.
|
CAD data
|
Properties
| ||||
|
Item no.
|
CAD data
|
Properties
| ||||
|
Item no.
|
CAD data
|
Properties
| ||||
|
Item no.
|
CAD data
|
Properties
| ||||
|
Item no.
|
CAD data
|
Properties
|
Loading…
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
25
rod diameter [mm]
20
max. pulling force [kN]
6.1
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
without
pressure range
high pressure
clamping stroke [mm]
12
extended piston rod
without
max. clamping force [kN]
4.9
swing mechanism
reinforced
overload protection device
without
query of
without
swing angle [°]
90
swing direction
ccw
swing stroke [mm]
total stroke [mm]
12
wiper material
FKM
clamping arm seat
cone 1:10
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
25
rod diameter [mm]
20
max. pulling force [kN]
6.1
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
without
pressure range
high pressure
clamping stroke [mm]
12
extended piston rod
without
max. clamping force [kN]
4.9
swing mechanism
reinforced
overload protection device
without
query of
without
swing angle [°]
90
swing direction
ccw
swing stroke [mm]
total stroke [mm]
12
wiper material
metal
clamping arm seat
cone 1:10
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
25
rod diameter [mm]
20
max. pulling force [kN]
6.1
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
accessory: electrical or pneumatic
pressure range
high pressure
clamping stroke [mm]
12
extended piston rod
with
max. clamping force [kN]
4.9
swing mechanism
reinforced
overload protection device
without
query of
piston: clamped and unclamped
swing angle [°]
90
swing direction
ccw
swing stroke [mm]
total stroke [mm]
12
wiper material
FKM
clamping arm seat
cone 1:10
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
25
rod diameter [mm]
20
max. pulling force [kN]
6.1
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
accessory: electrical or pneumatic
pressure range
high pressure
clamping stroke [mm]
12
extended piston rod
with
max. clamping force [kN]
4.9
swing mechanism
reinforced
overload protection device
without
query of
piston: clamped and unclamped
swing angle [°]
90
swing direction
ccw
swing stroke [mm]
total stroke [mm]
12
wiper material
metal
clamping arm seat
cone 1:10
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
25
rod diameter [mm]
20
max. pulling force [kN]
6.1
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
without
pressure range
high pressure
clamping stroke [mm]
12
extended piston rod
without
max. clamping force [kN]
4.9
swing mechanism
reinforced
overload protection device
without
query of
without
swing angle [°]
90
swing direction
cw
swing stroke [mm]
total stroke [mm]
12
wiper material
FKM
clamping arm seat
cone 1:10
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
25
rod diameter [mm]
20
max. pulling force [kN]
6.1
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
without
pressure range
high pressure
clamping stroke [mm]
12
extended piston rod
without
max. clamping force [kN]
4.9
swing mechanism
reinforced
overload protection device
without
query of
without
swing angle [°]
90
swing direction
cw
swing stroke [mm]
total stroke [mm]
12
wiper material
metal
clamping arm seat
cone 1:10
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
25
rod diameter [mm]
20
max. pulling force [kN]
6.1
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
accessory: electrical or pneumatic
pressure range
high pressure
clamping stroke [mm]
12
extended piston rod
with
max. clamping force [kN]
4.9
swing mechanism
reinforced
overload protection device
without
query of
piston: clamped and unclamped
swing angle [°]
90
swing direction
cw
swing stroke [mm]
total stroke [mm]
12
wiper material
FKM
clamping arm seat
cone 1:10
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
25
rod diameter [mm]
20
max. pulling force [kN]
6.1
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
accessory: electrical or pneumatic
pressure range
high pressure
clamping stroke [mm]
12
extended piston rod
with
max. clamping force [kN]
4.9
swing mechanism
reinforced
overload protection device
without
query of
piston: clamped and unclamped
swing angle [°]
90
swing direction
cw
swing stroke [mm]
total stroke [mm]
12
wiper material
metal
clamping arm seat
cone 1:10
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
40
rod diameter [mm]
32
max. pulling force [kN]
15.8
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
without
pressure range
high pressure
clamping stroke [mm]
16
extended piston rod
without
max. clamping force [kN]
12
swing mechanism
reinforced
overload protection device
without
query of
without
swing angle [°]
90
swing direction
ccw
swing stroke [mm]
total stroke [mm]
16
wiper material
FKM
clamping arm seat
cone 1:10
Item no.
functioning
double acting without swing stroke
piston diameter [mm]
40
rod diameter [mm]
32
max. pulling force [kN]
15.8
max. operating pressure [bar]
350
seals
NBR
hydraulic ports
pipe thread and manifold connection with O-ring
body design
top flange
position monitoring
without
pressure range
high pressure
clamping stroke [mm]
16
extended piston rod
without
max. clamping force [kN]
12
swing mechanism
reinforced
overload protection device
without
query of
without
swing angle [°]
90
swing direction
ccw
swing stroke [mm]
total stroke [mm]
16
wiper material
metal
clamping arm seat
cone 1:10
Accessories (11)
| Item no. | CAD data | Description |
|---|---|---|
|
Item no.
|
CAD data
|
Description
Pneumatic position monitoring
for size 1895
as per data sheet B1.8806
|
|
Item no.
|
CAD data
|
Description
Electrical position monitoring
for size 1895, without switch
as per data sheet B1.8806
|
|
Item no.
|
CAD data
|
Description
Pneumatic position monitoring
for size 1893
as per data sheet B1.8806
|
|
Item no.
|
CAD data
|
Description
Electrical position monitoring
for size 1893, without switch
as per data sheet B1.8806
|
|
Item no.
|
CAD data
|
Description
Electrical position monitoring
for size 1896, without switch
as per data sheet B1.8806
|
|
Item no.
|
CAD data
|
Description
Pneumatic position monitoring
for size 1896,
as per data sheet B1.8806
|
|
Item no.
|
CAD data
|
Description
Electrical position monitoring
for size 1896, with switch
as per data sheet B1.8806
|
|
Item no.
|
CAD data
|
Description
Electrical position monitoring
for size 1895, with switch
as per data sheet B1.8806
|
|
Item no.
|
CAD data
|
Description
Electrical position monitoring
for size 1893, with switch
as per data sheet B1.8806
|
|
Item no.
|
CAD data
|
Description
Inductive proximity switch
PNP, 10...30 VDC
as per data sheet B1.8251
|
